Kramer TP-583Rxr Video Extender Receiver, 100m Cable, Surround Sound, Compatible With Other Standard HDBT Extenders

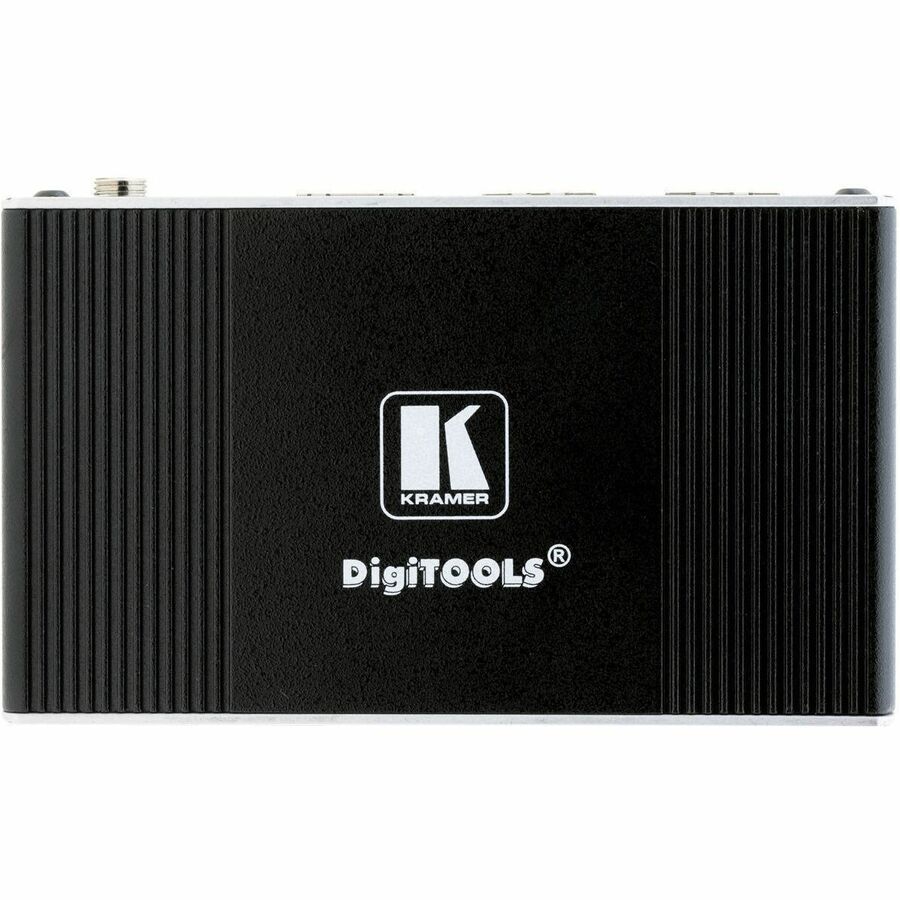

Kramer TP-583Rxr Video Extender Receiver

4K HDR HDMI Receiver with RS-232 & IR over Extended-Reach HDBaseT

TP-583Rxr is a high-performance, extended-reach HDBaseT receiver for 4K HDR HDMI, RS-232 and IR signals over twisted pair. TP-583Rxr converts the HDBaseT signal and outputs it to its HDMI and control ports. It enables extending video signal up to 100m (330ft) at 4K@60Hz (4:4:4) video resolution, up to 180m (590ft) at 4K@30Hz (4:4:4), and up to 200m (650ft) at HD video resolution over Kramer copper c a b l e s . I t i s c o m p a t i b l e w i t h s t a n d a r d HDBaseT-compliant extenders at 4K@30Hz and HD video resolutions

FEATURES

High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. It employs low-level video compression technology that delivers visually lossless performance for 4K@60 (4:4:4) and HDR signals with near-zero latency. This high-quality compressed signal is extended to almost double the extension reach of the uncompressed signal

Future-proof, Standard Extender - TP-583Rxr is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends either compressed or uncompressed HDBaseT signal, by auto-adapting to the compression capabilities of its connected extender. This enables it to be connected to any market-available HDBaseT-compliant extension product

Intelligent Compression Handling - Automatically detects a standard HDBaseT extender without compression and disables the compression to extend the signal in compliance with the detected extender

HDMI Signal Extension - HDR HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display

I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems

Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound

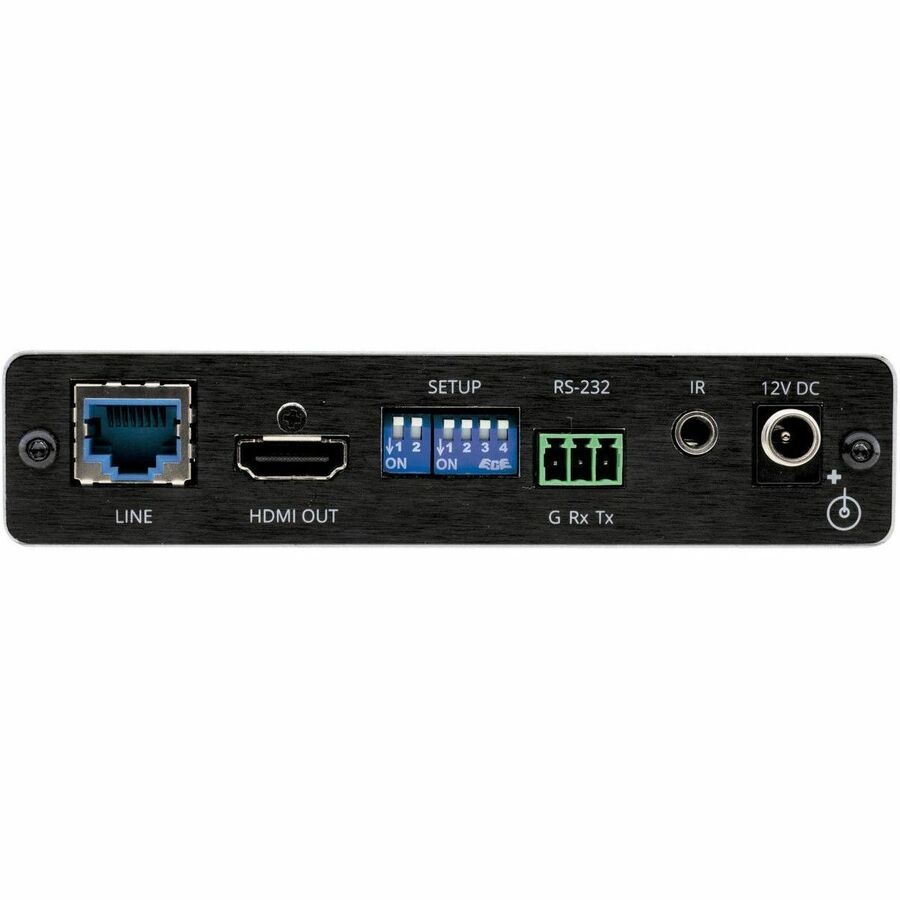

Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control

Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line

Cost-Effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment

Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter

• Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending


• 1080p supported video mode for optimal viewing brilliance and efficiency


• 4096 x 2160 maximum video resolution for a vivid, crystal clear display with added productivity


• HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency


• The TP-583Rxr video extender receiver provides plenty of freedom with wired connectivity


• 1 input devices supported to better accommodate your specific requirements


• 1 output devices supported for maximum productive usability


• 330 ft maximum operating distance for reliable coverage and maximum portability


• 4K graphics mode for an immersive and sharp viewing experience


• Video Extender Receiver with blu-ray player application/usage to ensure maximum dependability and optimal performance
